How does RUD TECDOS Drive Technology help in Sluice Gates?

Sluice gates, used in dams, reservoirs, wastewater and industrial sites, play a critical role in water control. They help to regulate the flow, separate sections and protect communities during extreme weather events such as floods. Hence, a proper drive system such as TECDOS from RUD, which controls the sluice gates, is critical for safety, compliance and long-term performance.

The Risk in Traditional Sluice Gate Drives

Many old sluice gates still use non-calibrated lifting chains and non-standard pocket wheels that were never designed to operate efficiently as a single unit. In such gates, lifting chains and pocket wheels are sourced from different manufacturers. These components may appear compatible, but they are not calibrated to operate together. As the non-calibrated chain articulates over a non-matching pocket wheel, misalignment can occur, resulting in pinging, jolting, and uneven load transfer.

Over time, this can accelerate wear and tear, increase vibration and place stress on the drive system. In the worst-case scenario, the chain can fail to sit correctly on the pocket wheel, preventing the gate from opening or closing when required. During high water flow or floods, this type of failure can have serious consequences, including flooding, plant shutdowns, or unplanned downtime for repairs. The issue is simple: non-calibrated lifting chains are not suited to precision sluice gate applications, particularly when paired with pocket wheels manufactured to different tolerances and standards.

RUD Precision Engineering

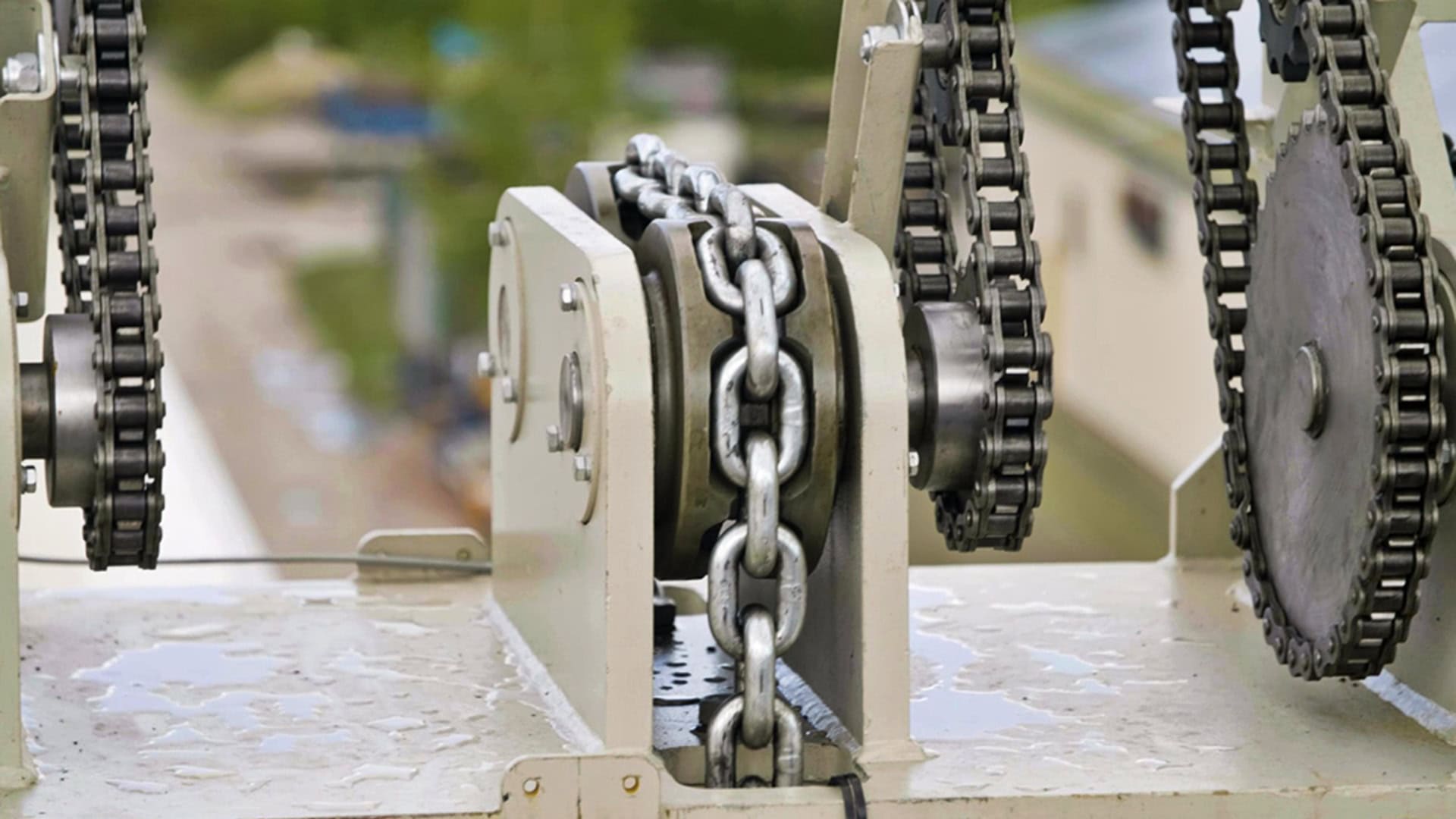

RUD is a world leader in drive technology. We provide solutions through a fully integrated approach to chain and drive technology. RUD lifting chains are 100% calibrated using state-of-the-art manufacturing and measurement technology. The matching pocket wheels are designed and produced to the same exact tolerances, ensuring smooth articulation, correct load distribution and reliable operation.

Both the chain and the pocket wheel are manufactured in Germany, in the same facility, drawing on more than 150 years of chain engineering expertise. This single-source manufacturing model eliminates compatibility risks and delivers precision not achievable with mixed-component systems.

TECDOS Drive Technology for Sluice Gates

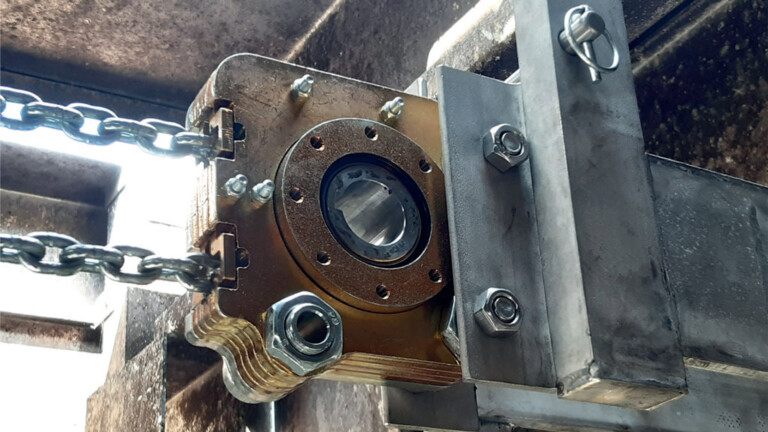

The TECDOS Drive Technology builds on this foundation of calibrated chain engineering to deliver a robust, mechanical drive solution specifically suited to challenging sluice gate environments. TECDOS is a modular drive system that transmits force via a high-strength round-steel chain and precision-engineered drive units, such as the PI-GAMMA and OMEGA drives.

Unlike friction-based mechanisms or hydraulic systems, TECDOS relies on positive mechanical engagement. This ensures predictable, controlled movement under high static loads, variable operating conditions and frequent start-stop cycles, which are common in sluice gate applications. The cold-formed round steel chain offers exceptional strength, fatigue resistance and wear performance, making it ideal for wet, abrasive and corrosive environments found in water and wastewater infrastructure.

TECDOS is Ideal in Sluice Gate Applications

Sluice gates are hard on drive systems. Constant exposure to moisture, sediment, and challenging weather events can degrade standard rack-and-pinion drives, wire rope systems or hydraulic cylinders. These systems depend on friction surfaces, seals or fluid pressure, which can lead to variability, leakage and higher maintenance requirements over time.

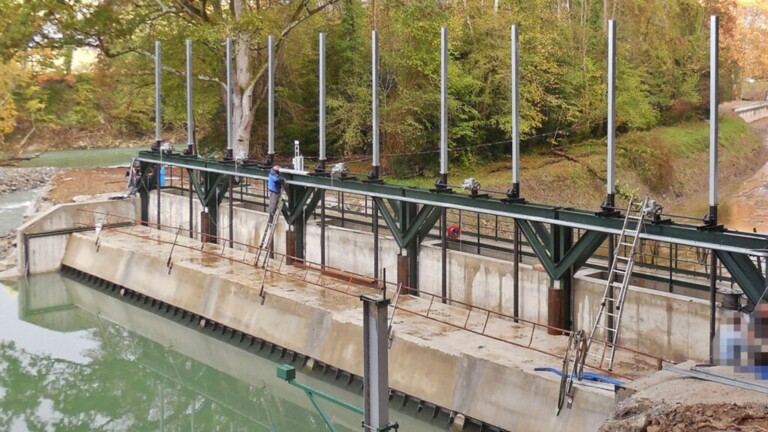

TECDOS drive systems are engineered to minimise these failings. With fewer wear-prone interfaces and a mechanical load path, the system ensures consistent performance throughout its life. This is valuable in remote or difficult to access installations where maintenance opportunities are limited and downtime is costly. TECDOS systems are suitable for vertical lift gates, horizontal slide gates, isolation gates and flood protection gates and support linear, vertical, horizontal or inclined movements.

Technical Overview

TECDOS® Drive Technology - Key Characteristics

Comparison with Traditional Sluice Gate Drives

Extending Asset Life Through Refurbishment

An advantage of RUD products is the ability to refurbish existing sluice gate systems with minimal changes. In many cases, TECDOS drive technology and calibrated chain systems can be integrated into existing gate designs, improving reliability without the cost of full replacement. This can help extend the operational life of sluice gate assets by 10 to 15 years and maximise whole-of-life cost savings while improving safety and performance.

After Sales Support

RUD’s commitment does not end with the supply of components. Customers benefit from local after-sales support in Australia, backed by experienced engineers who understand both the mechanical and operational challenges of sluice gate applications. From system selection and design support through to refurbishment planning and ongoing service, RUD works as a long-term partner.

A Future Ready Solution for Critical Infrastructure

As water and wastewater infrastructure move toward longer maintenance cycles, increased automation, and higher reliability expectations, it is essential to have credible mechanical solutions. TECDOS® Drive Technology provides a dependable, precision-engineered solution that integrates with modern control systems while maintaining mechanical simplicity.

By eliminating the risks associated with non-calibrated chains and mismatched pocket wheels and by offering a robust, serviceable drive solution, RUD sets a new benchmark for reliability in sluice gate applications.

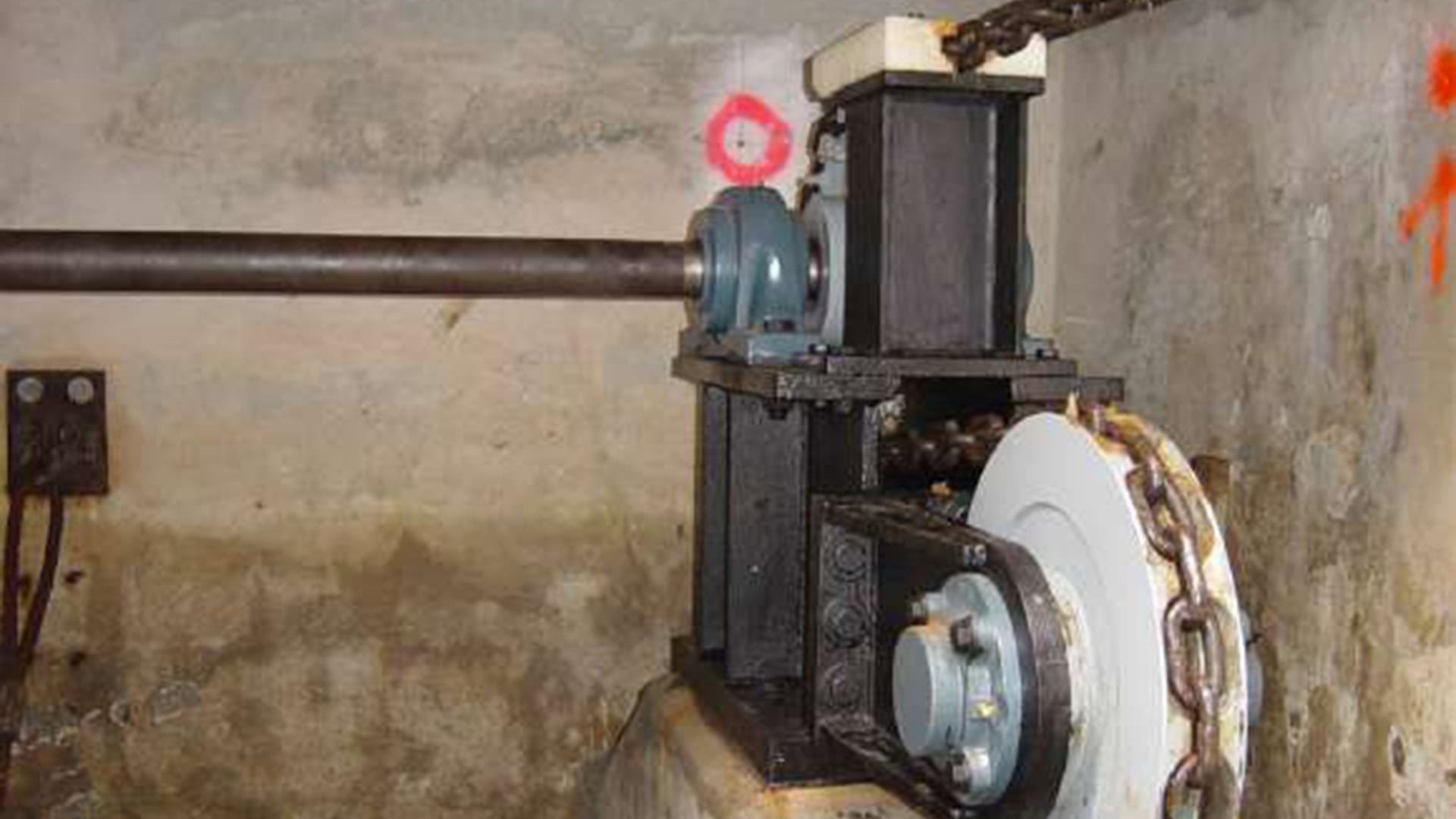

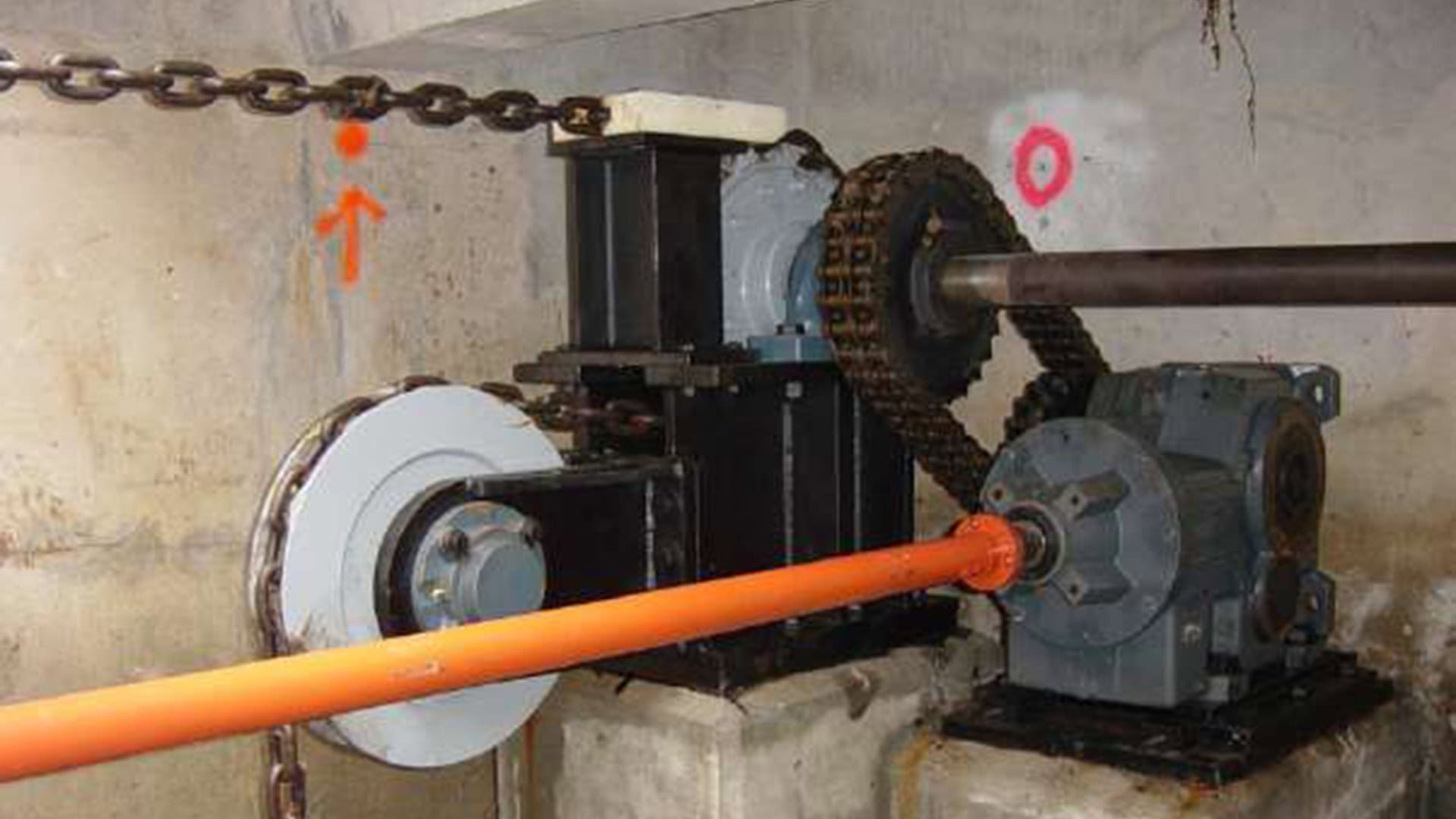

Key Installation: In 2003, the Panama Canal Authority replaced the old mechanical drives with TECDOS OMEGA Drive for higher resistance to corrosion and shock loads.
